Lote Reservado – El Retiro (Antioquia – Colombia)

Files available for download:

  • AutoCAD (DWG).
  • MicroStation (DGN).
  • Adobe Acrobat (PDF).
  • Bitmap Image (JPG).

Visit i-avanzada and browse more Geolocated Layouts.

Key features:

  • Geolocated High Resolution Satellite Orthomosaics: TIF file.
  • Reference coordinate system:
    • 🇨🇴 MAGNA-SIRGAS / Zona Bogotá – Colombia / EPSG 3116.
  • Units: Meters [m].
  • Paper size: DIN A1 (841x594mm).
  • Print scale: 1=1.
  • AI vector process analysis ready.
  • Updatable over the time.
  • Available scales: 1=20000, 1=10000, 1=5000, 1=2500 and 1=1250.

Project overview:

Exclusive flat lot and measuring about 101 m x 82 m. Strategically located at the entrance and exit of El Retiro (Antioquia), it borders the Linear Park and Paseo del Río.

Exclusivo lote, completamente plano y de dimensiones aproximadas de 101m x 82m. Ubicado estratégicamente en el acceso y salida de El Retiro (Antioquia), limita con el Parque Lineal y Paseo del Río.

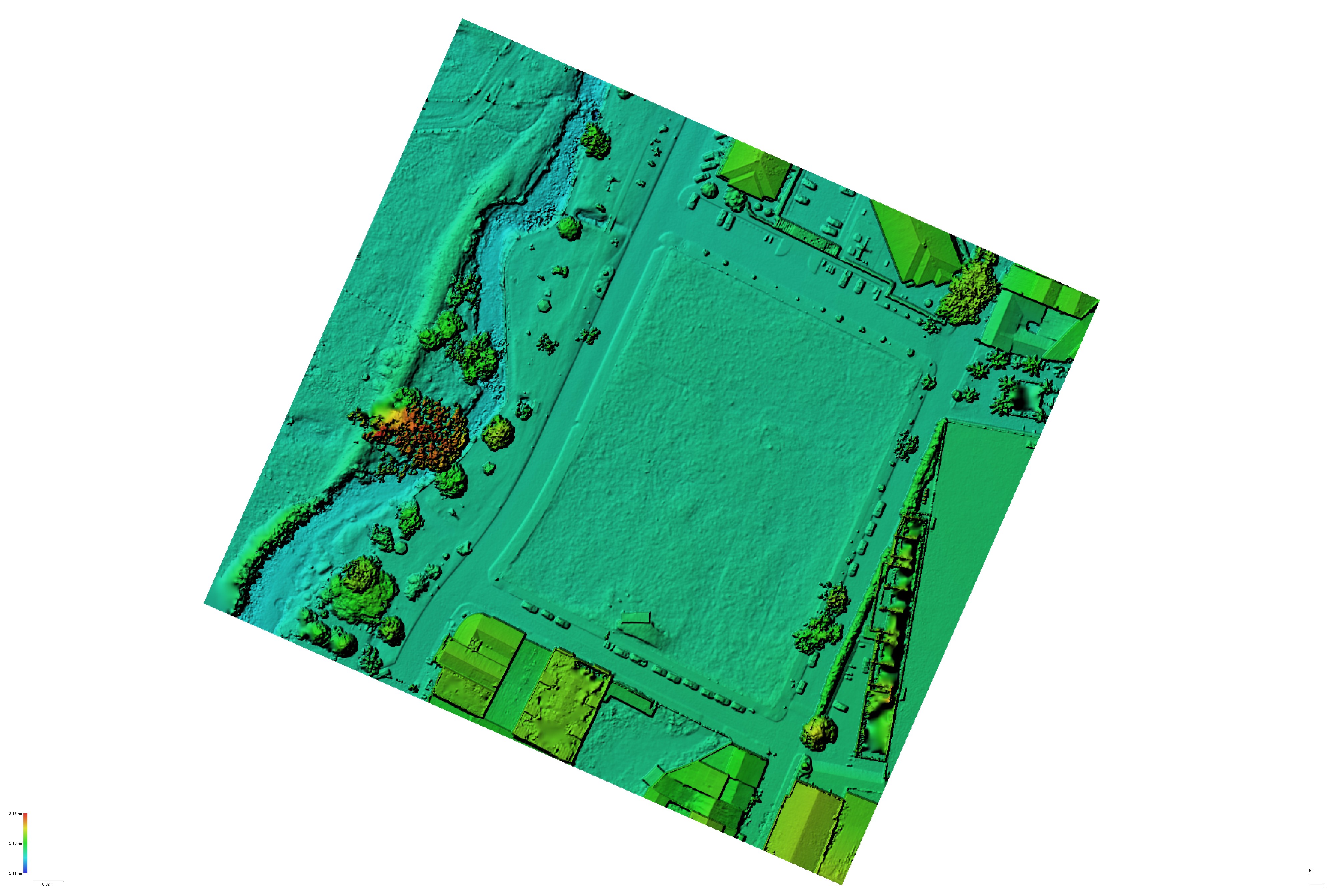

Lote Reservado – El Retiro (Antioquia) (Mesh and DEM) Comparision (Satellite and Drone)


Lote Reservado – El Retiro (Antioquia) AutoCAD Drawings Comparision (Satellite and Drone)
Green Field
AIRBUS (1/2024) – DRONE (07/2024) / SCALE 1=5000

CONTACT US / CONTÁCTANOS HERE

BUY HERE

1068GL. Lote El Retiro 19.07.2024

(1068GL)
